About This

• Circuit Protection: The fused power distribution block is used for audio system to prevent excessive current and overheating of wires.When detecting abnormal current or short circuits, the MIDI fuse cuts off power to prevent overload damage to your car audio system, protecting your equipment.

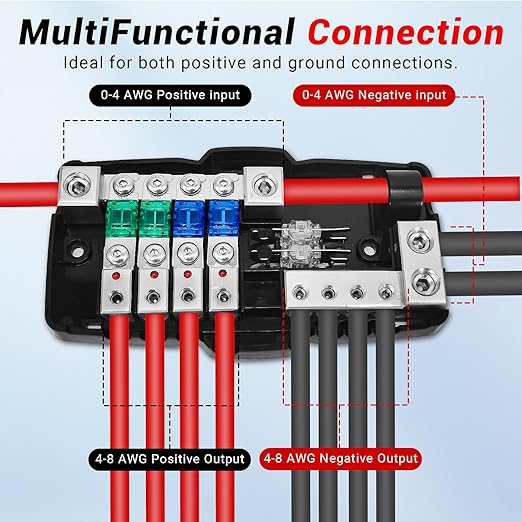

• Specifications:This fused power distribution block is capable for both positive and ground connections with 2 input & 4 output wires installation per pole. Features built-in MIDI/ANL fuse slots on positive terminals for circuit protection, and supports wiring (0/2/4 AWG inputs, 4/6/8 AWG outputs) for professional car audio installations.

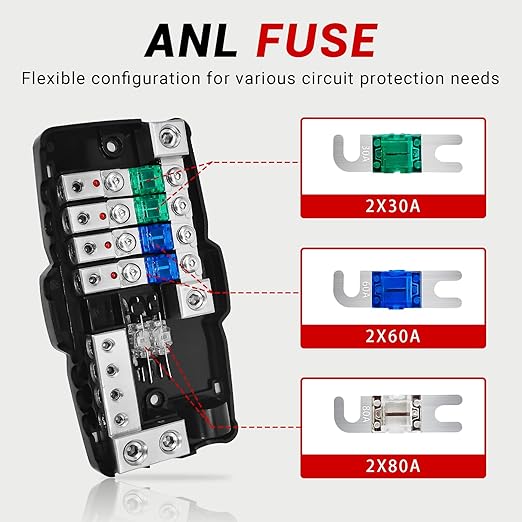

• Mini-ANL Fuse:Includes 6 professional-grade Mini-ANL fuses (2×30A, 2×60A, 2×80A) to handle different power requirements.

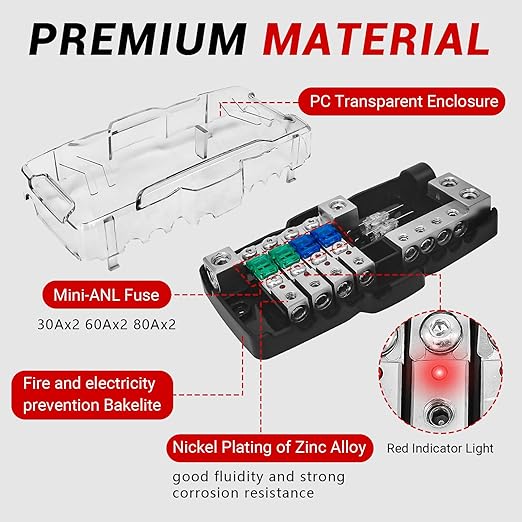

• Red LED Indicator design:This MIDI Fuse holder is equipped with a built-in red LED indicator that lights up when a fuse blows,which allows you identify the status of fuse easily.
• Wide Application:Our Mini ANL fuse block is suitable for diverse scenarios such as forklifts, buses, electric vehicles, golf carts, wiring harness assembly, car audio systems,etc.

Overview

• Current Rating : 200 Amps
• Connector Type : Screw
• Number Of Contacts : 8
• Mounting Type : Panel Mount
• Color : Black & Silver
• Brand : CXCESNS
• Voltage : 12 Volts
• Number Of Poles : 4

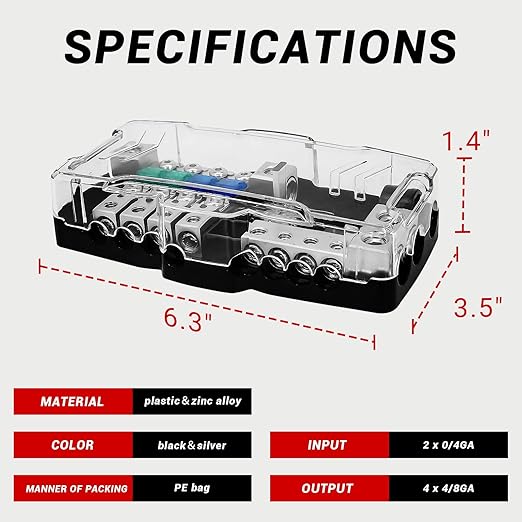

• Product Dimensions : 3.5"W x 1.4"H
• Specification Met : CE
