2*10G SFP+4*1000M SFP+8*1000M RJ45 PoE Port Managed Switch
$1,269.00
Skip to product information
2*10G SFP+4*1000M SFP+8*1000M RJ45 PoE Port Managed Switch
$1,269.00
Shipping calculated at checkout.
Description

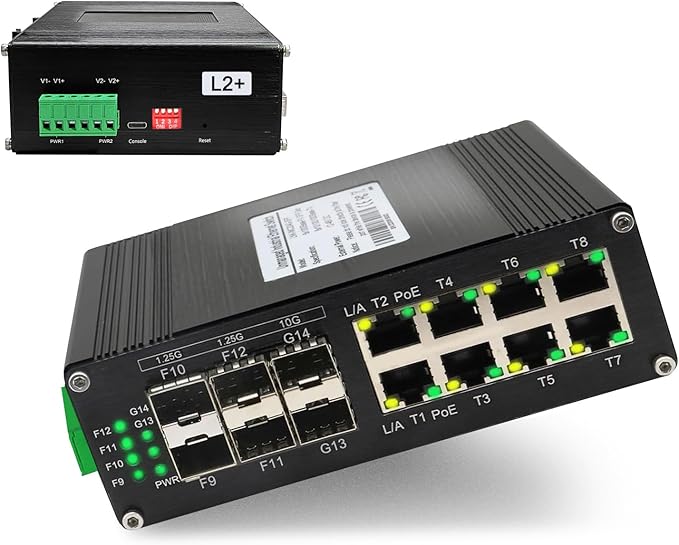

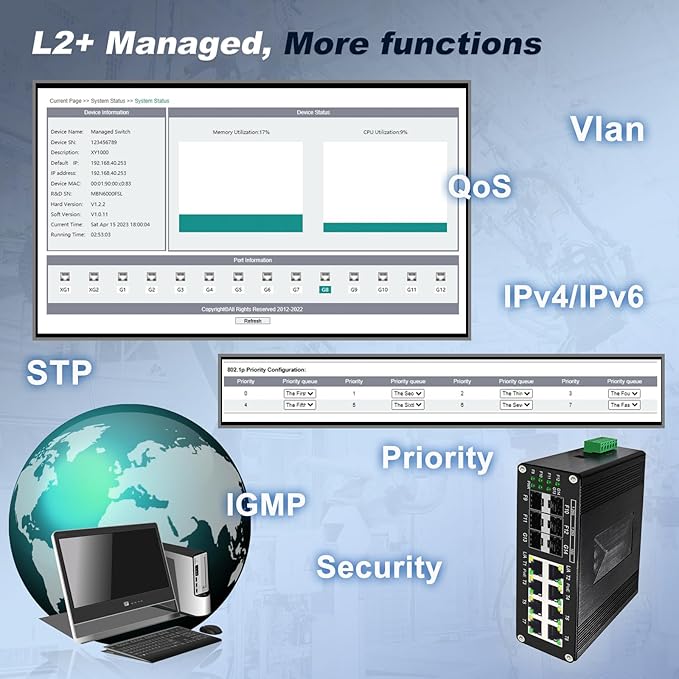

Overview: It is L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. Features: 1. Support 8x10/100/1000Base-T 802.3at PoE + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
2. 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
3. IEEE802.3af/at compliant

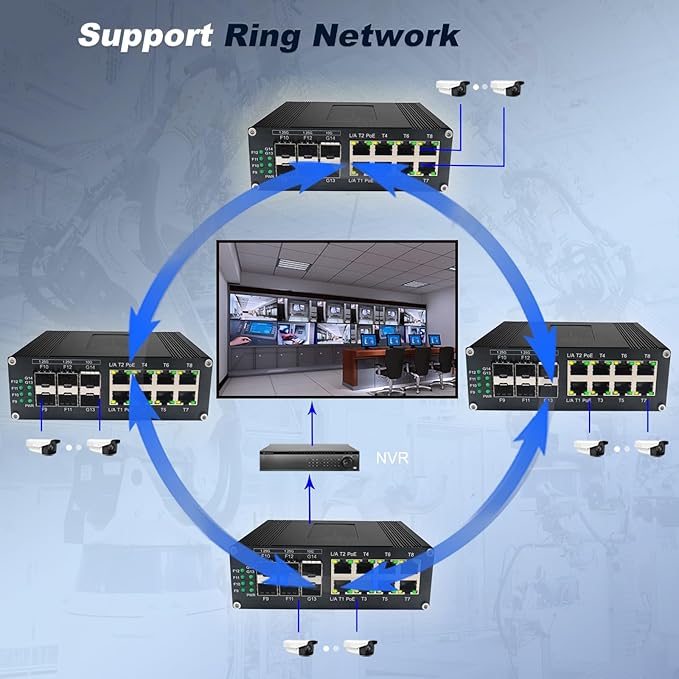

4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
6. 9K Bytes Jumbo Frame
7. IEEE 802.3az Energy Efficient Ethernet (EEE)
8. 48-57VDC Redundant Power Input
9. Industry standard design, dust-proof and close design IP40 Aluminum Case

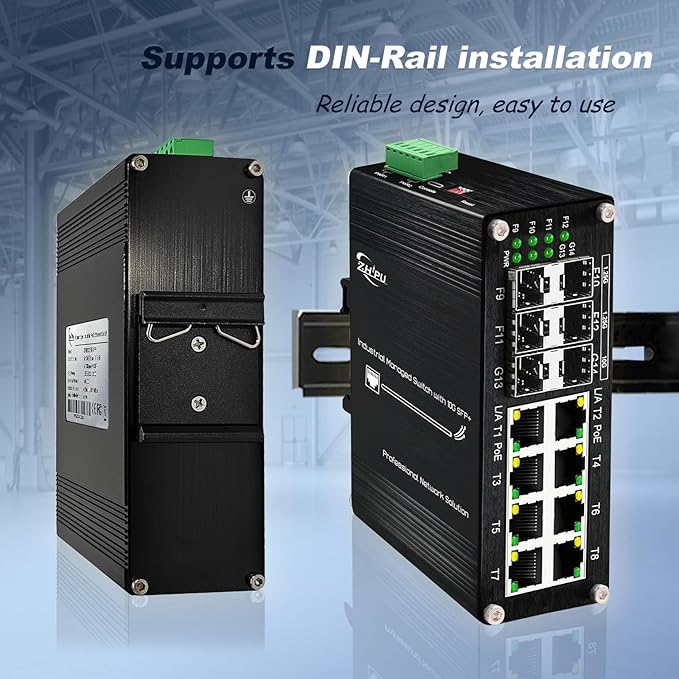

10. Supports DIN-Rail installation

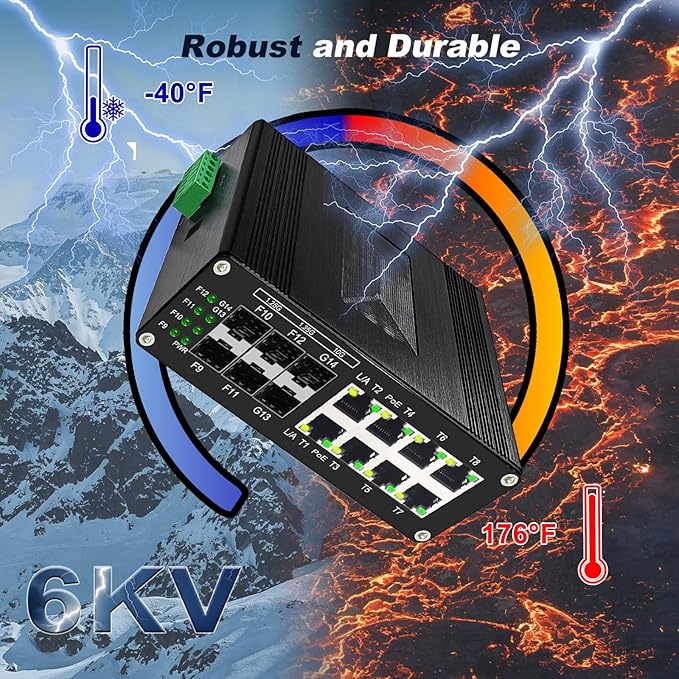

11. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature Specification: 1. Connector: 6 x RJ45
2. Packet Buffer: 12M bits
3. Packet Length: 9K bytes
4. MAC Address Table: 8K
5. Processing Type: Store-and-Forward
6. Backplane bandwidth: 64 Gbps
7. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

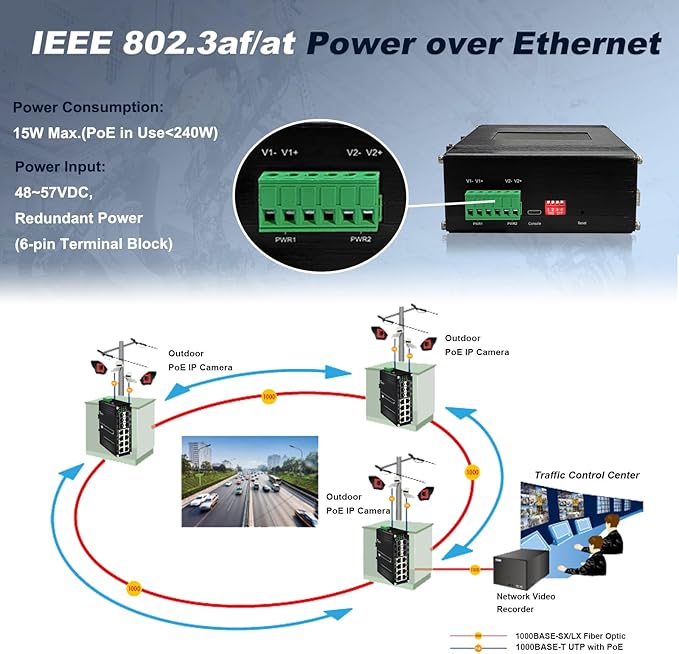

8. Input Power: 48~57VDC, 6-pin terminal block
9. PoE Standard: IEEE802.3af/at
10. PoE Budget: Up to 240-watt PoE budget
11. Power Consumption: 15W Max.(PoE in Use<240W)
12. Power PIN Assignment: 1/2/4/5(+), 3/6/7/8(-)
13. Certification: CE, FCC, RoHS
14. Mounting Options: DIN-Rail
15. Casing: Aluminum Case
16. Operating Temperature: -40°C to 80°C (-40°F to 176°F)
17. Storage Temperature: -40°C to 85°C (-40°F to 185°F)
18. Dimensions (WxDxH): 149 x 114 x 50 mm
19. Weight: 0.55Kg Packages: 1* 14-port Manged PoE Ethernet switch
1* 6-pin terminal block
1* USB line
1* User Manual
Product Details
| Manufacturer | Xinyuanhuitong |
| Model | L2+ 8PoE+6SFP -10G |
| Color | Black |
| Size | Industrial |
| Quantity | 1 |
| Weight | 907 g |
