Description
Overview:

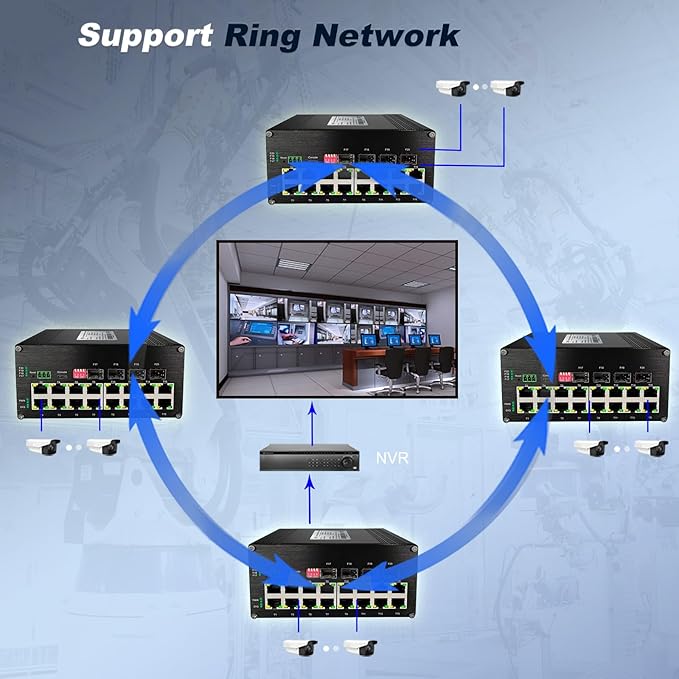

It is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. Features:

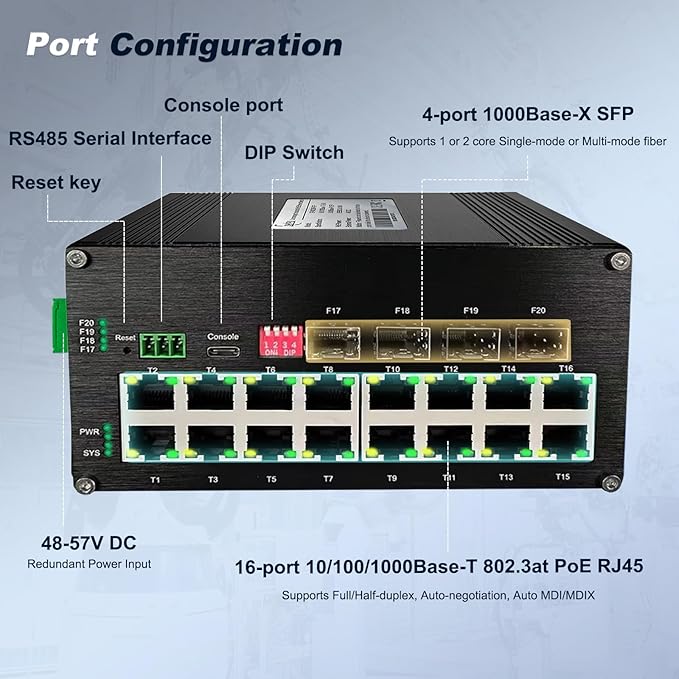

1. Support 16x10/100/1000Base-T + 4x1000Base-X SFP +
2. 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
3. IEEE802.3af/at compliant
4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
6. 10K Bytes Jumbo Frame
7. IEEE 802.3az Energy Efficient Ethernet (EEE)
8. 48-57VDC Redundant Power Input
9. Industry standard design, dust-proof and close design IP40 Aluminum Case

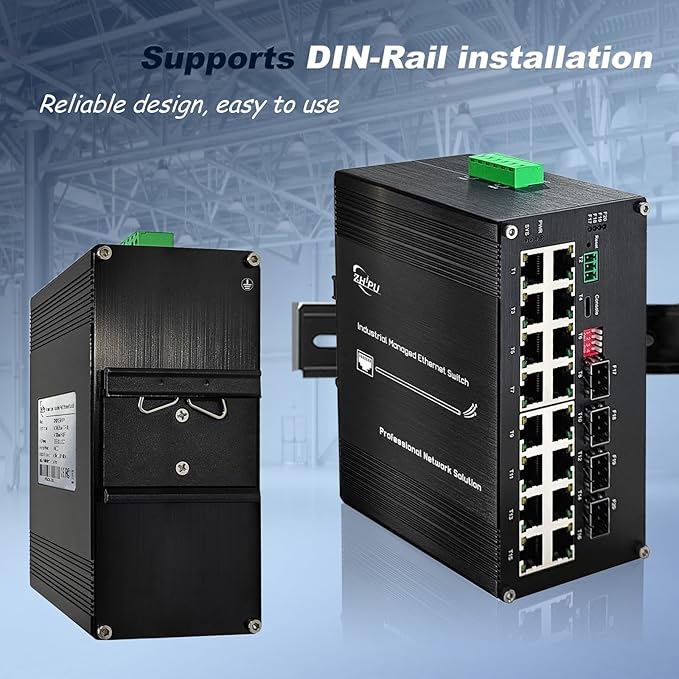

10. Supports DIN-Rail installation
11. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature Specification:
1. Connector: 16 x RJ45
2. Optical Port: 4 x 1000Base-X SFP
3. Packet Buffer: 12M bits
4. Packet Length: 9K bytes
5. MAC Address Table: 10K
6. Processing Type: Store-and-Forward
7. Backplane bandwidth: 40 Gbps
8. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

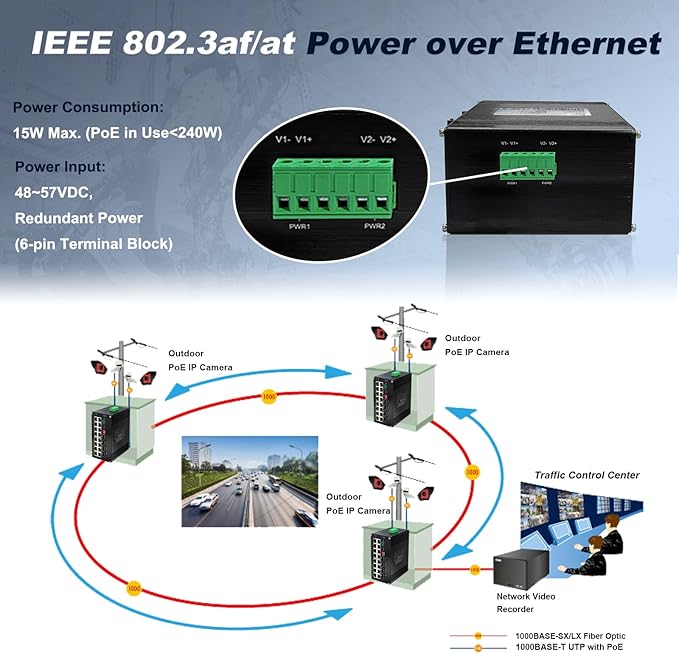

9. Input Power: 48~57VDC, 6-pin terminal block
10. PoE Standard: IEEE802.3af/at
11. PoE Budget: Up to 480-watt PoE budget
12. Power Consumption: 15W Max.(PoE in Use<240W)
13. Power PIN Assignment: 1/2/4/5(+), 3/6/7/8(-)
14. Certification: CE, FCC, RoHS
15. Mounting Options: DIN-Rail
16. Casing: Aluminum Case
17. Operating Temperature: -40°C to 80°C (-40°F to 176°F)
18. Storage Temperature: -40°C to 85°C (-40°F to 185°F)
19. Dimensions (WxDxH): 155 x 115 x 85 mm
20. Weight: 1.2kg Packages:
1* 20-port Manged PoE Ethernet switch
1* 6-pin terminal block
1* USB line
1* User Manual
Product Details
| Manufacturer | Xinyuanhuitong |
| Model | L2+ 16PoE+4SFP |
| Color | Black |
| Quantity | 1 |
| Weight | 1293 g |
