Description
Overview:

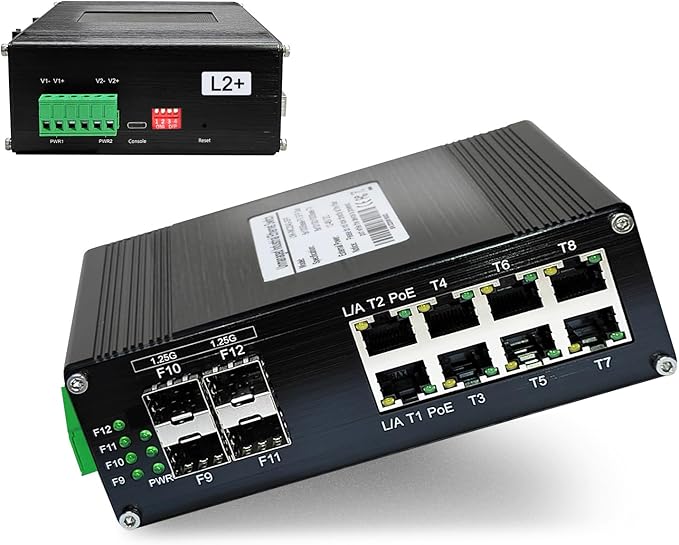

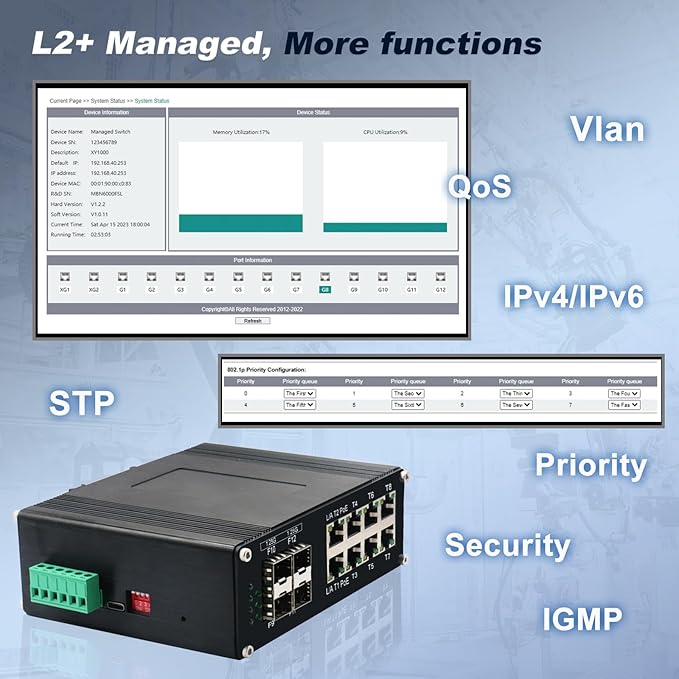

It is a L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 Gigabit Ethernet ports and 4 SFP fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto
MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access
points between remote locations. Features:

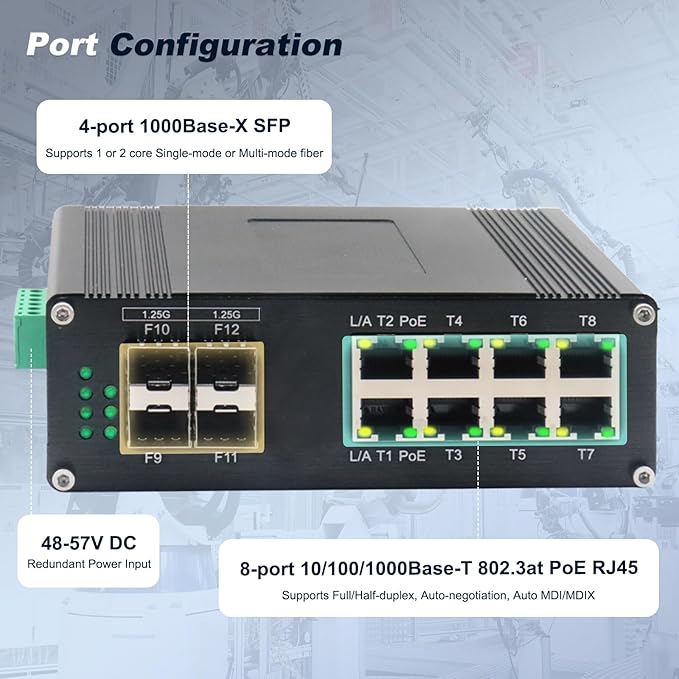

1. Support 8x10/100/1000Base-T + 4x1000Base-X SFP
2. 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
3. IEEE802.3af/at compliant

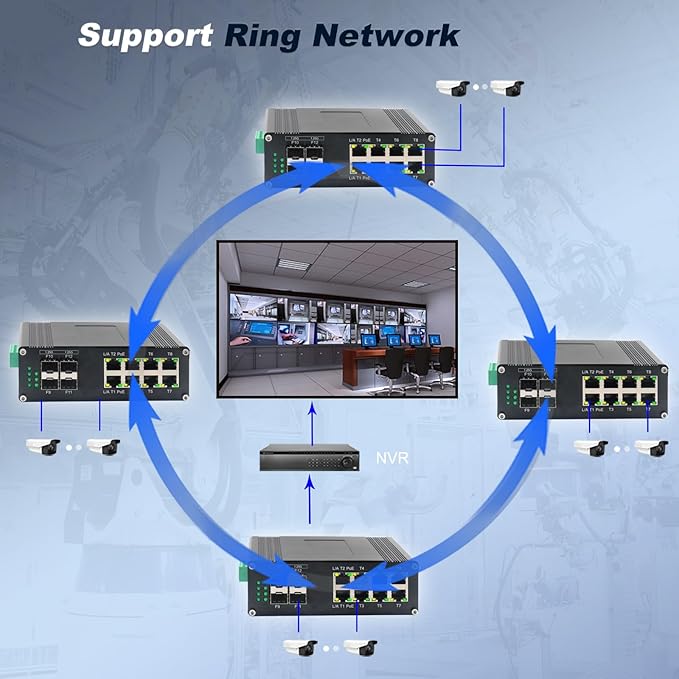

4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
6. IEEE 802.3az Energy Efficient Ethernet (EEE)
7. 48-57VDC Redundant Power Input
8. Industry standard design, dust-proof and close design IP40 Aluminum Case

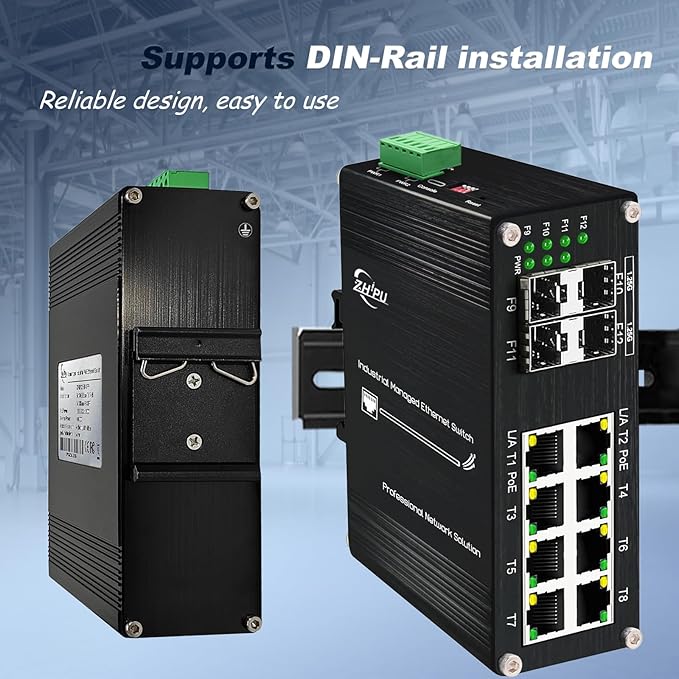

9. Supports DIN-Rail installation

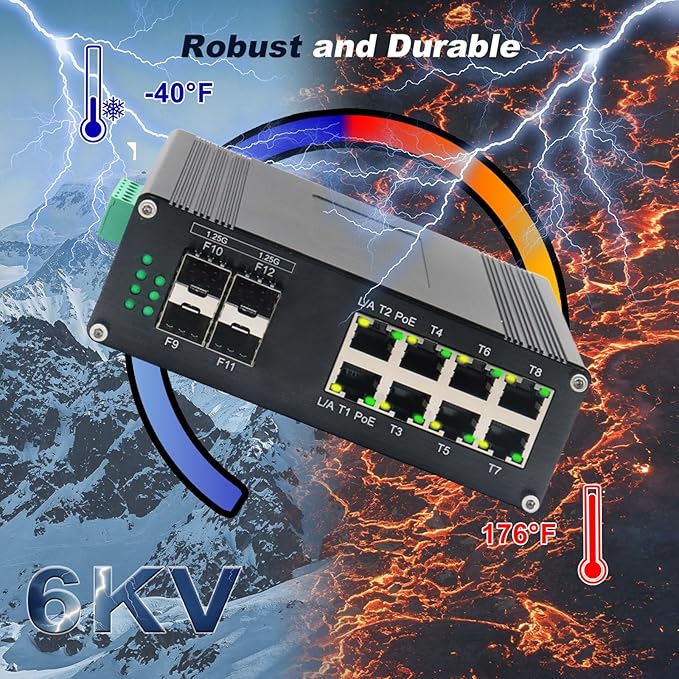

10. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature Specification:
1. Connector: 8 x RJ45
2. Optical Port: 4 x 1000Base-X SFP
3. Packet Buffer: 12M bits
4. Packet Length: 9K bytes
5. MAC Address Table: 8K
6. Processing Type: Store-and-Forward
7. Backplane bandwidth: 24 Gbps
8. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)
9. Input Power: 48~57VDC, 6-pin terminal block

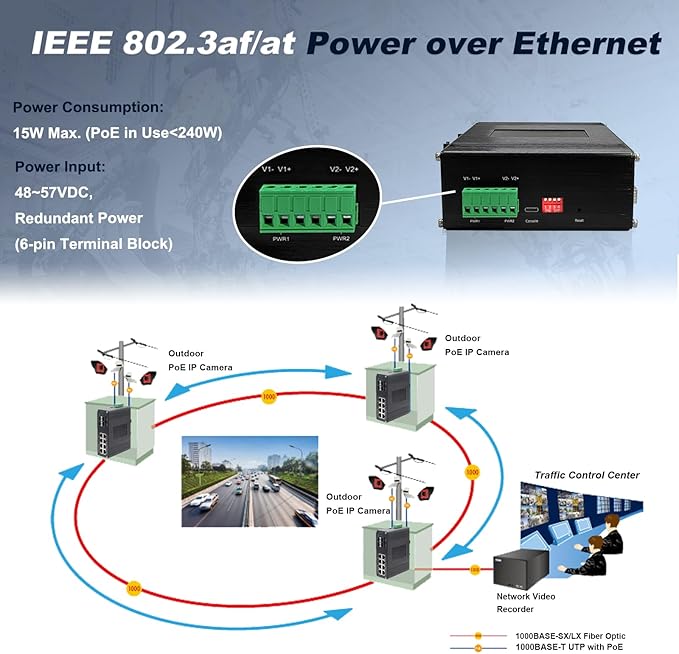

10. PoE Standard: IEEE802.3af/at
11. PoE Budget: Up to 240-watt PoE budget
12. Power Consumption: 15W Max.(PoE in Use<240W)
13. Power PIN Assignment: 4/5(+), 7/8(-)
14. Certification: CE, FCC, RoHS
15. Mounting Options: DIN-Rail
16. Casing: Aluminum Case
17. Operating Temperature: -40°C to 80°C (-40°F to 176°F)
18. Storage Temperature: -40°C to 85°C (-40°F to 185°F)
19. Dimensions (WxDxH): 149 x 114 x 50 mm
20. Weight: 0.55kg Packages:
1* Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
1* User Manual
Product Details
| Manufacturer | Xinyuanhuitong |
| Model | L2+ 8PoE+4SFP |
| Color | Black |
| Size | Industrial |
| Quantity | 1 |
| Weight | 699 g |
