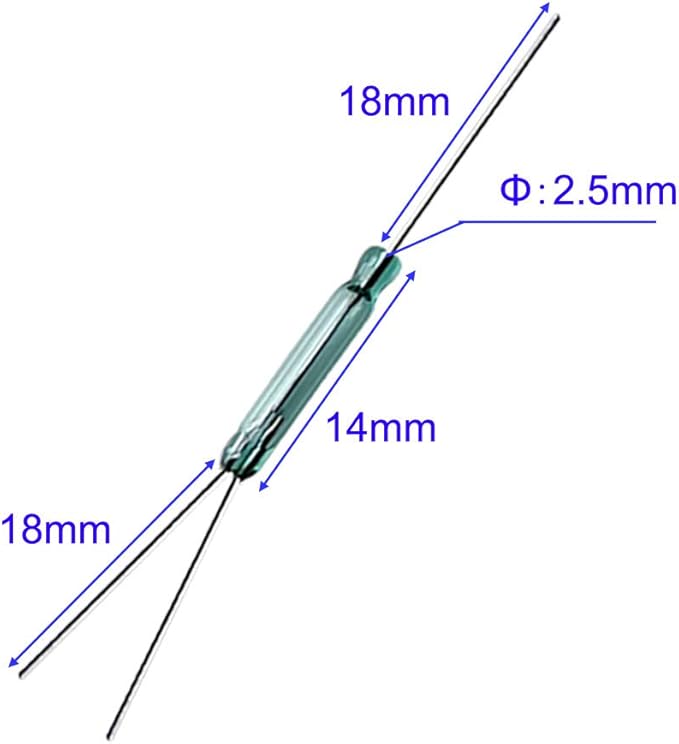

Gebildet 10pcs 4W 3 Pin Reed Switch Reed Contact Normally Open N/O N/C SPDT, Glass Reed Relay Magnetic Induction Switch (2.5mm x 14mm)
$14.99
Skip to product information
Gebildet 10pcs 4W 3 Pin Reed Switch Reed Contact Normally Open N/O N/C SPDT, Glass Reed Relay Magnetic Induction Switch (2.5mm x 14mm)
$14.99
Shipping calculated at checkout.
Description
Maximum power: 4W
Maximum switching voltage: 60VDC/VAC
High voltage: 60VDC/VAC
Working temperature: -20 degrees to 80 degrees
Maximum switching current: 0.25A
Maximum load current: 0.5A
Maximum contact resistance: 115M
Minimum insulation resistance: 2x107/2x109
Action time: 0.25ms
Bounce time: 0.05ms
Response frequency: 3000Hz
Sensitive value: 10 ~ 20AT
The minimum value reset Min: 5FT
Maximum contact capacitance: 2.0PF
Product Details
| Manufacturer | Gebildet |
| Model | E305 |
| Color | Transparent-E305 |
| Quantity | 10 |
| EAN | 0729257786146 |
| Weight | 9 g |
