VictorsHome Magnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs
$22.49
Skip to product information
VictorsHome Magnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs
$22.49
Shipping calculated at checkout.
Description

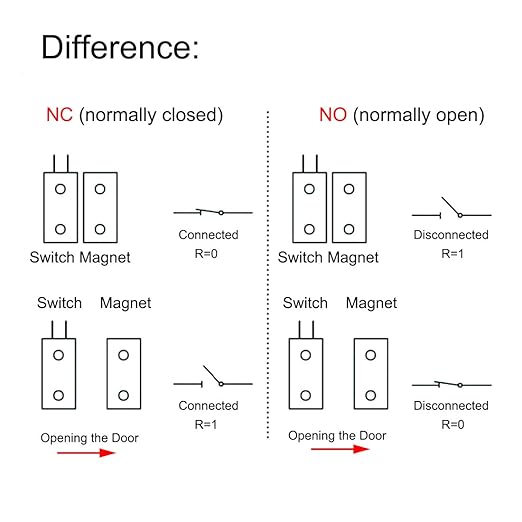

NORMALLY CLOSED
When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
WIDE APPLICAIONS
Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
PLEASE NOTE
A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply and cannot be directly connected to the lamp.
Specifications:
Model: RC-36
Contact Type: NC(Normally Closed)
Max. Sensor Sensitivity: 10mm(+/-5mm)
Max. Current: 150mA
Max. Voltage: 100V
Working Voltage: DC0-24V
Max. Contact Power: 10W

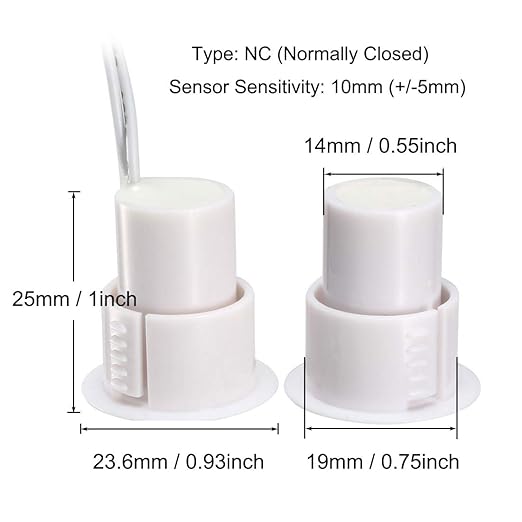

Size(Approx.): 25 x 23.6mm / 0.98 x 0.93inch (H*D)
Cable Length(Each): 30cm / 11.8inch
Housing Material: ABS
Wire Type: 1007#/24#300mmUL
Package Content:
5 x Magnetic Door Switch
Product Details
| Manufacturer | VictorsHome |
| Model | RC36 |
| Color | White |
| Size | NC 10pcs |
| Quantity | 10 |
| EAN | 0795274019710 |
| Weight | 209 g |
