About This

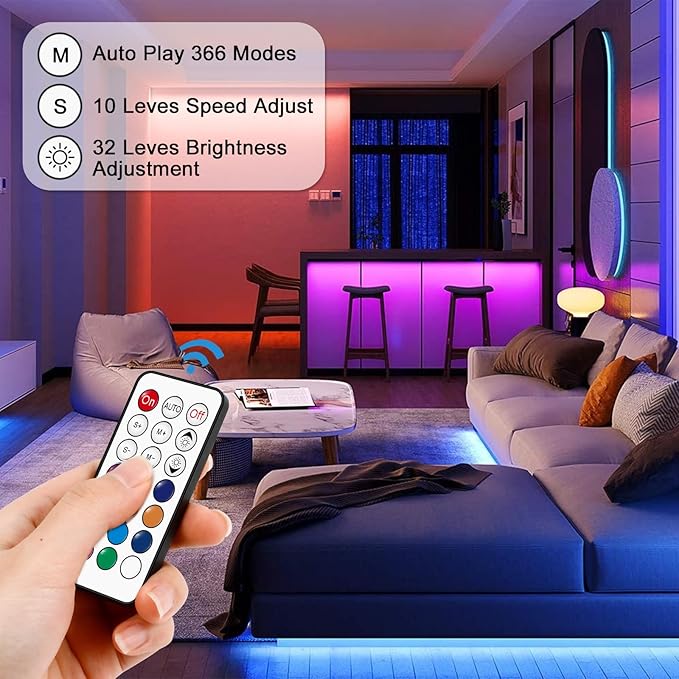

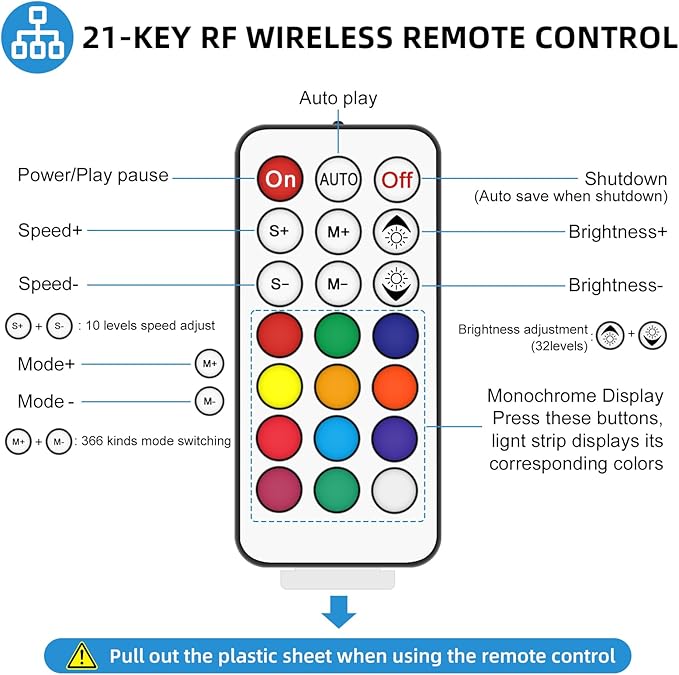

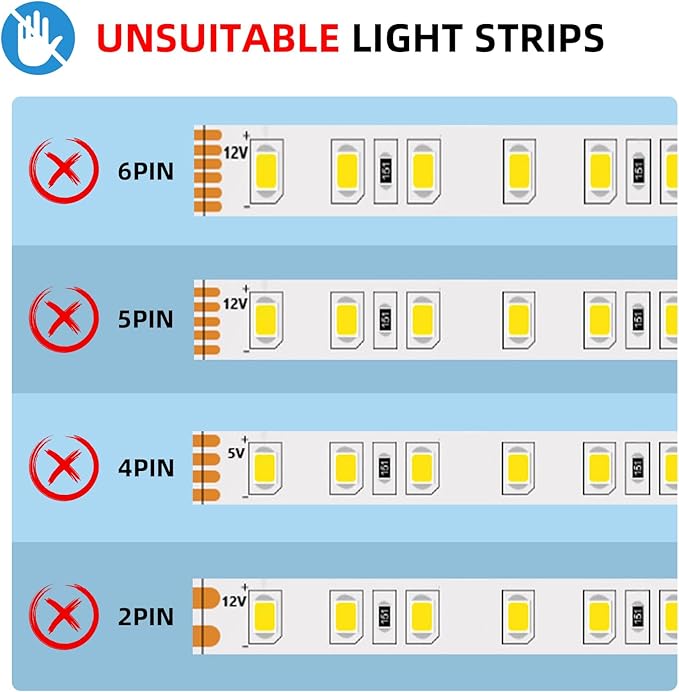

• Support WS2811 WS2812B LED lights. It can’t control SK6812 RGBW and regular RGB LED without a driver IC. 300+ color modes, such as rainbow, wave, breathing, strobing, gradual change, color cycle, comet, static, fading, and chasing, are vivid and beautiful. Color-changing speed and brightness are adjustable.

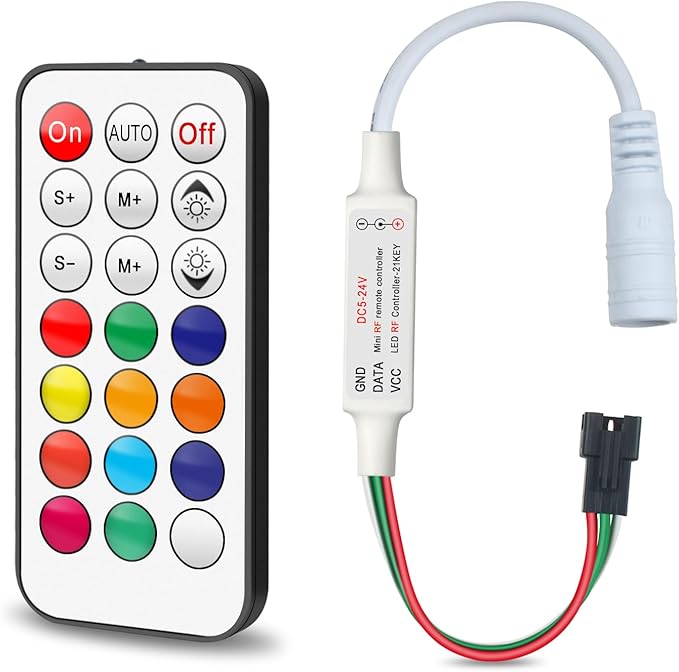

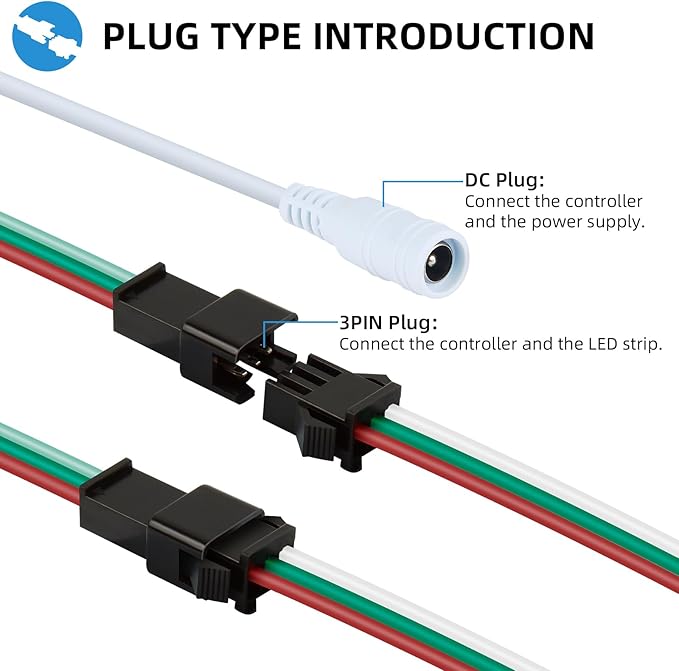

• Come with a 3-pin JST connector and DC female connector. Support all the 3 PIN Single signal IC chip LED products. The remote can match only one receiver. One remote can also control many receivers. Just plug and play. No soldering is needed. Save user settings automatically when power is off. It can adjust the Color order, RGB GRB BRG, etc. When you press Green, the LED is red. This is not a quality problem, please read the user manual and set it correctly.

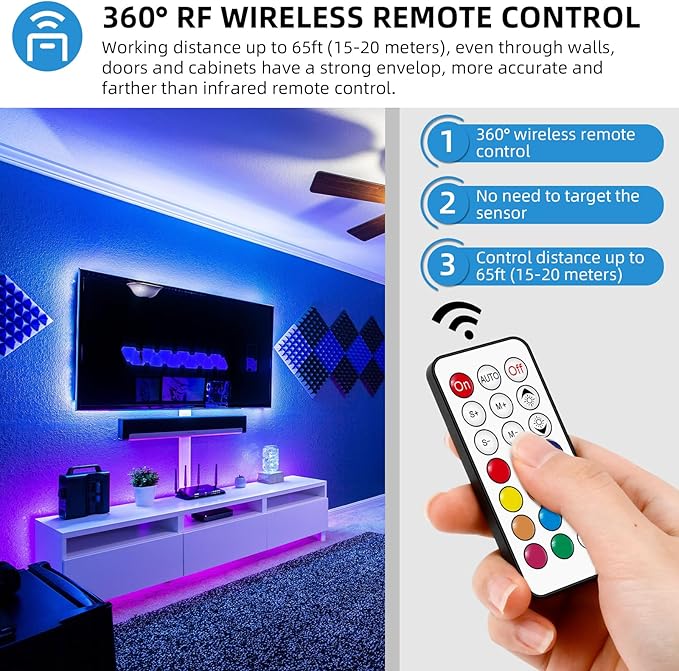

• 32-98FT(10-30M) long distance wireless RF remote control. Mini size, convenient to use. DC 5V~24V input. But it can’t regulate the output voltage. Please choose the power supply according to your LED lights, not the controller. For example, the DC5V WS2812B LED Strip must use a DC5V power supply.[***Input voltage=output voltage.]

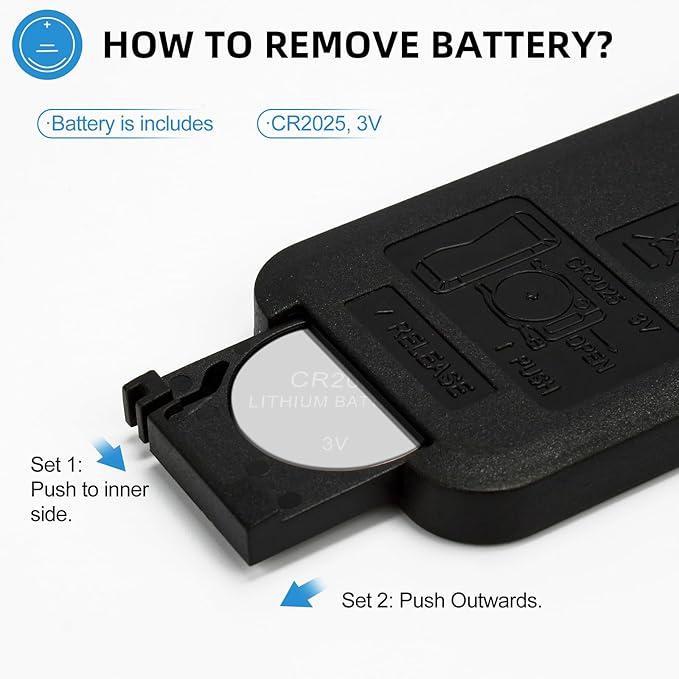

• The controller contains coin cell batteries. RF remote. If the controller is very hot during use, please give the light strips with a separate power supply, or with the use of amplifiers.
• Support setting controlled pixel number. Maximum number of control pixels: Total 2048 pixels (Controller factory default 300 pixel points). Recommend using 300 pixels (Approx. 5 meters of light strip length.) The product itself can carry power 5V<30W, 12V<72W, 24V<144W, such as more than this power, please give the light strips a separate power supply, or with the use of amplifiers, otherwise it will lead to controller overload damage.

Overview

• Brand : RGBZONE
• Special Feature : Ergonomic
• Color : RF
• Max Number of Supported Devices : 1
• Compatible Devices : Devices with 3-PIN Single signal IC chip LED products
